EoMPLS Configuration

EoMPLS is point to point L2 VPN services which is used to transport all Ethernet frame received on particular Ethernet or VLAN,  its also called Any Transport over MPLS(ATOM) means this technology can connect like Frame-Relay, PPP, Ethernet,ATM etc.

IOS used
c7200-adventerprisek9-mz.151-4.M

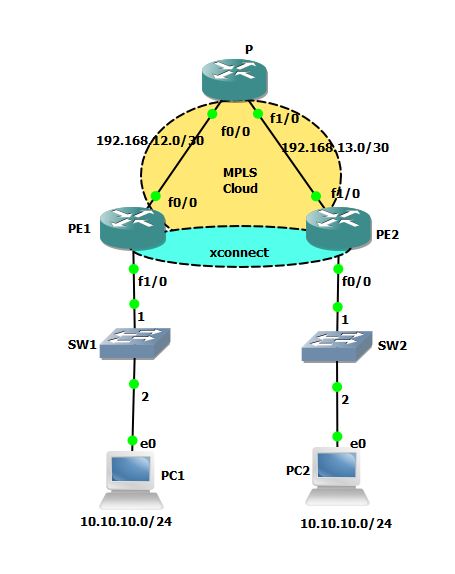

Logical Topology
Make sure MPLS with IGP  is confugure as shown in a diagram. I'm not going to configure MPLS here. This tutorial only show how to configure xconnect tunnel peer with other side customer faces interface in our network diagram we interconnect PE1 fa1/0 with PE2 fa0/0 interfaces.

Config of PE1

PE1#sh run
Building configuration...

Current configuration : 1337 bytes
!
upgrade fpd auto
version 15.1
service timestamps debug datetime msec
service timestamps log datetime msec
no service password-encryption
!
hostname PE1
!

ip cef

interface Loopback0
 ip address 2.2.2.2 255.255.255.255
 ip ospf network point-to-point
 ip ospf 1 area 0
!
interface FastEthernet0/0
 ip address 192.168.12.2 255.255.255.252
 ip ospf 1 area 0
 duplex half
 mpls ip
!
interface FastEthernet1/0
 no ip address
 duplex auto
 speed auto
 xconnect 3.3.3.3 15 encapsulation mpls
!

router ospf 1


mpls ldp router-id Loopback0 force
======================================
PE1#sh mpls l2transport vc

Local intf     Local circuit              Dest address    VC ID      Status
-------------  -------------------------- --------------- ---------- ----------
Fa1/0          Ethernet                   3.3.3.3         15         DOWN
PE1#
*Mar  8 07:49:39.887: %LDP-5-NBRCHG: LDP Neighbor 3.3.3.3:0 (2) is UP

PE1#sh mpls l2transport vc

Local intf     Local circuit              Dest address    VC ID      Status
-------------  -------------------------- --------------- ---------- ----------
Fa1/0          Ethernet                   3.3.3.3         15         UP



PE1#sh mpls l2transport vc detail
Local interface: Fa1/0 up, line protocol up, Ethernet up
  Destination address: 3.3.3.3, VC ID: 15, VC status: up

pc1

PC1> ping 10.10.10.11
84 bytes from 10.10.10.11 icmp_seq=1 ttl=64 time=39.002 ms
84 bytes from 10.10.10.11 icmp_seq=2 ttl=64 time=39.002 ms
84 bytes from 10.10.10.11 icmp_seq=3 ttl=64 time=39.002 ms
84 bytes from 10.10.10.11 icmp_seq=4 ttl=64 time=40.002 ms
84 bytes from 10.10.10.11 icmp_seq=5 ttl=64 time=31.001 ms

PC1> sh ip

NAME        : PC1[1]
IP/MASK     : 10.10.10.10/24
===============================================================

pc2
====
PC2> ping 10.10.10.10
84 bytes from 10.10.10.10 icmp_seq=1 ttl=64 time=40.002 ms
84 bytes from 10.10.10.10 icmp_seq=2 ttl=64 time=40.002 ms
84 bytes from 10.10.10.10 icmp_seq=3 ttl=64 time=41.002 ms
84 bytes from 10.10.10.10 icmp_seq=4 ttl=64 time=59.003 ms
84 bytes from 10.10.10.10 icmp_seq=5 ttl=64 time=41.003 ms

PC2> sh ip

NAME        : PC2[1]
IP/MASK     : 10.10.10.11/24

=================================================================

PE1#sh mpls ldp neighbor all
    Peer LDP Ident: 1.1.1.1:0; Local LDP Ident 2.2.2.2:0
        TCP connection: 1.1.1.1.646 - 2.2.2.2.47031
        State: Oper; Msgs sent/rcvd: 36/35; Downstream
        Up time: 00:24:20
        LDP discovery sources:
          FastEthernet0/0, Src IP addr: 192.168.12.1
        Addresses bound to peer LDP Ident:
          192.168.12.1    1.1.1.1         192.168.13.1
    Peer LDP Ident: 3.3.3.3:0; Local LDP Ident 2.2.2.2:0
        TCP connection: 3.3.3.3.61604 - 2.2.2.2.646
        State: Oper; Msgs sent/rcvd: 21/22; Downstream
        Up time: 00:11:25
        LDP discovery sources:
          Targeted Hello 2.2.2.2 -> 3.3.3.3, active, passive
        Addresses bound to peer LDP Ident:
          3.3.3.3         192.168.13.2
