Understanding Spanning Tree Protocol (STP)

STP is a Layer 2 network protocol that prevents loops in a switched Ethernet network. Network loops can cause broadcast storms, leading to severe network congestion and downtime. STP achieves this by logically blocking redundant paths while still providing failover capabilities.

How STP Works: A Step-by-Step Breakdown

1. Root Bridge Election:

   • The first step in STP is the election of a "Root Bridge." This is the central point of reference for all other switches in the network.
   • The switch with the lowest Bridge ID (BID) becomes the Root Bridge. The BID consists of two parts:
     • Priority (a configurable value, default is 32768)
     • MAC Address (a unique hardware address)
   • If priorities are the same, the switch with the lowest MAC address wins the election.

2. Root Port Selection:

   • Each non-Root Bridge switch selects its "Root Port." This is the port with the lowest cost path to the Root Bridge.
   • The cost is determined by the link speed (e.g., 100 Mbps, 1 Gbps). Lower speed links have higher costs.

3. Designated Port Selection:

   • On each network segment, a "Designated Port" is selected. This is the port with the lowest cost path to the Root Bridge.
   • The Designated Port forwards traffic on that segment.

4. Blocking Redundant Ports:

   • Any port that is not a Root Port or a Designated Port is placed in a "Blocking" state. This prevents loops.


The Problem: Inappropriate Root Bridge Selection

In the scenario described:

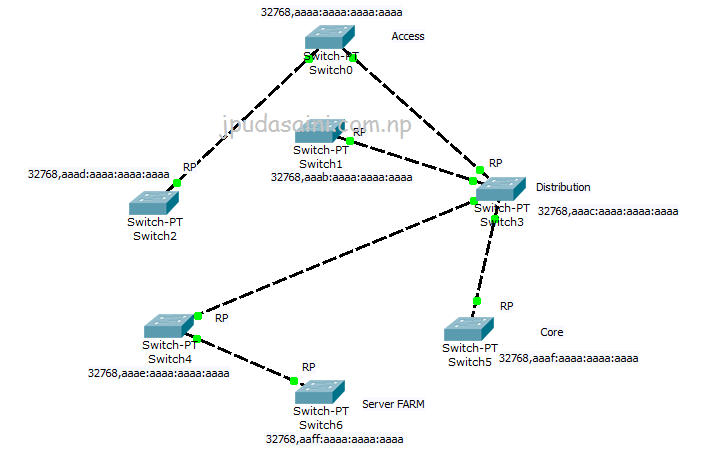

• An access layer switch (Switch0), due to its lowest MAC address, becomes the Root Bridge.
• This is problematic because access layer switches are typically:
  • Lower performance devices.
  • Located at the network's edge, not the core.
  • Potentially connected via slower links.

Consequences of a Poor Root Bridge Choice:

• Network Congestion:
  • All traffic destined for other parts of the network flows towards the Root Bridge.
  • If the Root Bridge is an access switch with limited capacity, it becomes a bottleneck.
  • Distribution layer switches flood the access layer switch with traffic.
• Performance Degradation:
  • Users experience slow network performance due to congestion.
  • The Root Bridge may become overloaded and crash.
• Network Instability:
  • A crashed Root Bridge can lead to significant network downtime while STP re-converges.
  • The core and distribution links are blocked, causing very inefficent network traffic flow.

The Solution: Designate a Core Switch as the Root Bridge

• Core switches are typically high-performance devices with redundant connections.
• They are centrally located in the network, making them ideal Root Bridge candidates.
• To ensure the core switch becomes the root bridge, the priority of the core switch should be lowered.

How to Configure the Root Bridge:

1. Connect to the Core Switch: Use a console cable or SSH to access the core switch's command-line interface (CLI).
2. Enter Global Configuration Mode:
   • enable
   • configure terminal
3. Configure STP Priority:
   • For VLAN 1 (the default VLAN): spanning-tree vlan 1 priority <priority_value>
   • Replace <priority_value> with a value lower than the default (32768). Common values are 4096, 8192, or 0. (0 being the highest preference)
   • If you're using Per-VLAN Spanning Tree (PVST+), configure the priority for each VLAN.
4. Verify the Configuration:
   • show spanning-tree vlan 1 (or the relevant VLAN)
   • Check that the core switch is listed as the Root Bridge.

Key Takeaways:

• Proper Root Bridge selection is critical for network stability and performance.
• Core switches should typically be designated as Root Bridges.
• Configure STP priority to ensure the desired switch becomes the Root Bridge.
• Avoid relying on MAC addresses to determine the Root Bridge.
