iPerf the tool to test Bankwidth of Network

A tutorial on using iPerf to measure network throughput! Here's how you can expand on this and make it even more helpful:

1. Download and Installation:

  • Download from this link: .
  • Installation instructions:After download place save it on your desire location.

2. Basic Usage:

  • Client-Server Model: Explain that iPerf operates in a client-server model. One machine acts as the server, while the other acts as the client.
  • Basic Commands:
    • Server:
      • iperf3 -s (Starts the iPerf server)
    • Client:
      • iperf3 -c <server_IP_address> (Connects to the server)
  • Interpreting Results:
    • Bandwidth: Measured in bits per second (bps) or megabits per second (Mbps).
    • Jitter: Measures the variation in packet arrival times.
    • Packet Loss: Indicates the percentage of packets that were lost during transmission.

3. Advanced Usage:

  • Bandwidth Control:
    • -b option to limit bandwidth on the client side.
  • UDP Mode:
    • -u option to test UDP throughput (useful for real-time applications).
  • Multiple Streams:
    • -P option to run multiple parallel streams for more accurate bandwidth measurements.
  • TCP Window Size:
    • -w option to adjust the TCP window size for fine-tuning performance.

4. Troubleshooting:

  • Firewall Rules: Explain that firewalls on both the client and server machines may need to be configured to allow iPerf traffic.
  • Network Connectivity: Emphasize the importance of a stable network connection for accurate results.

5. Example Scenarios:

  • iPerf can be used:
    • Measuring Wi-Fi performance: Test the speed of your Wi-Fi connection.
    • Diagnosing network bottlenecks: Identify bottlenecks in your network infrastructure.
    • Evaluating the performance of network upgrades: Measure the impact of network upgrades on throughput.

In this tutorial, I’ll guide you on how to use iPerf effectively. Since I’m demonstrating this on Windows, start by downloading iPerf for Windows and placing it on your Desktop or another location of your choice.

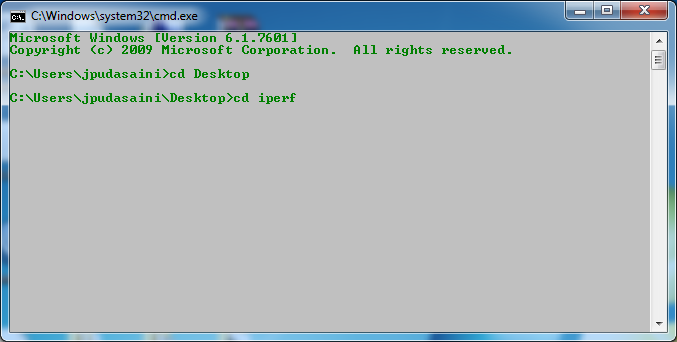

Now go to that folder using cd [FolderName], in my case I place it on desktop.


C:\Users\jpudasaini\Desktop\iperf>dir
03/13/2013  08:07 AM    <DIR>          .
03/13/2013  08:07 AM    <DIR>          ..
08/15/2010  01:54 AM            46,094 cyggcc_s-1.dll
08/15/2010  01:54 AM           791,566 cygstdc++-6.dll
08/31/2010  09:00 AM         2,648,181 cygwin1.dll
06/22/2011  03:56 PM    <DIR>          doc
03/13/2013  07:09 AM         1,268,927 iperf-2.0.5-2-win32.zip
02/02/2011  02:00 PM            95,125 iperf.exe
03/13/2013  08:07 AM               298 test.txt
               6 File(s)      4,850,191 bytes
               3 Dir(s)  36,552,073,216 bytes free


Now its time to create the SERVER first, use following command to create a server,


C:\Users\jpudasaini\Desktop\iperf>iperf -s

As you can see  that you are in iperf directory, from just use following command to test the actual bandwidth of the link


C:\Users\jpudasaini\Desktop\iperf>iperf -c 10.10.10.10
Output might look like this
------------------------------------------------------------
Client connecting to 10.10.10.10, TCP port 5001
TCP window size: 64.0 KByte (default)
------------------------------------------------------------
[  3] local 10.10.10.11 port 54723 connected with 10.10.10.10 port 5001
[ ID] Interval       Transfer     Bandwidth
[  3]  0.0-10.0 sec   100 MBytes  84.0 Mbits/sec

If you like to test bidirectional use this command

C:\Users\jpudasaini\Desktop\iperf>iperf -c 10.10.10.10 -d

6. Safety Considerations:

  • Security: Remind users to only run iPerf on trusted networks.
