Setup Hotspot In Mikrotik Router

How to setup Hotspot in MT router

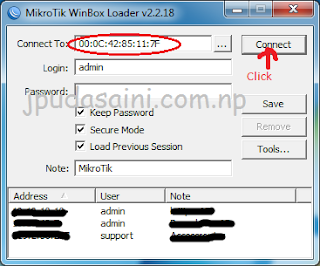

Lets began with Winbox Mikrotik login tool.

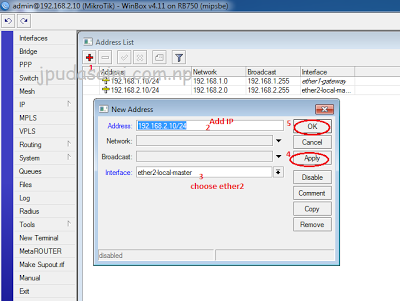

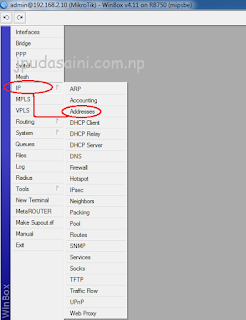

Now You logged into the router, Then click on Address to add IP address

Type the IP address like below

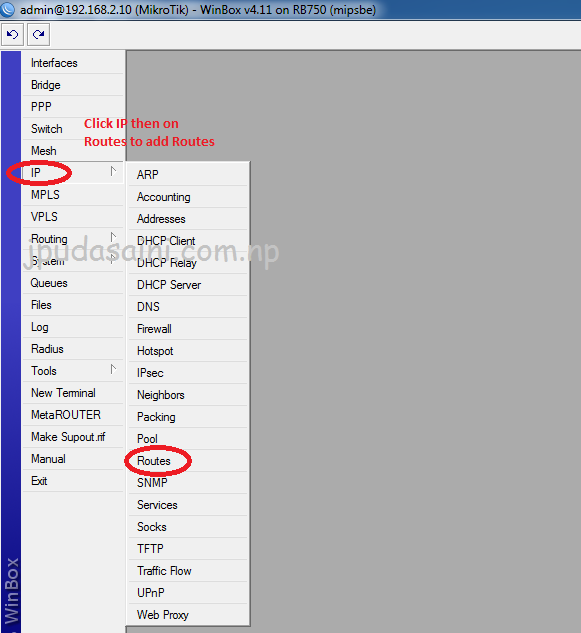

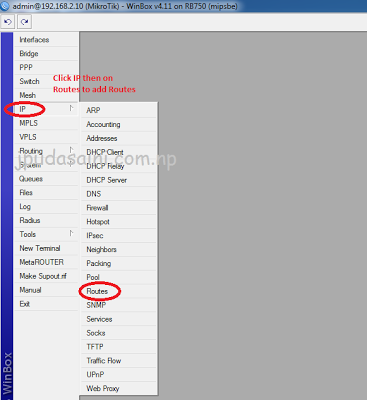

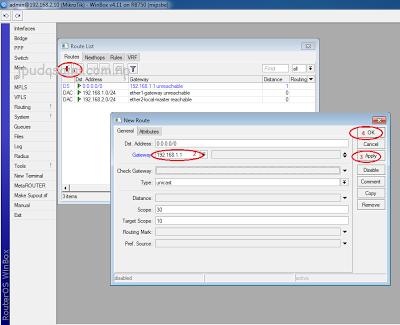

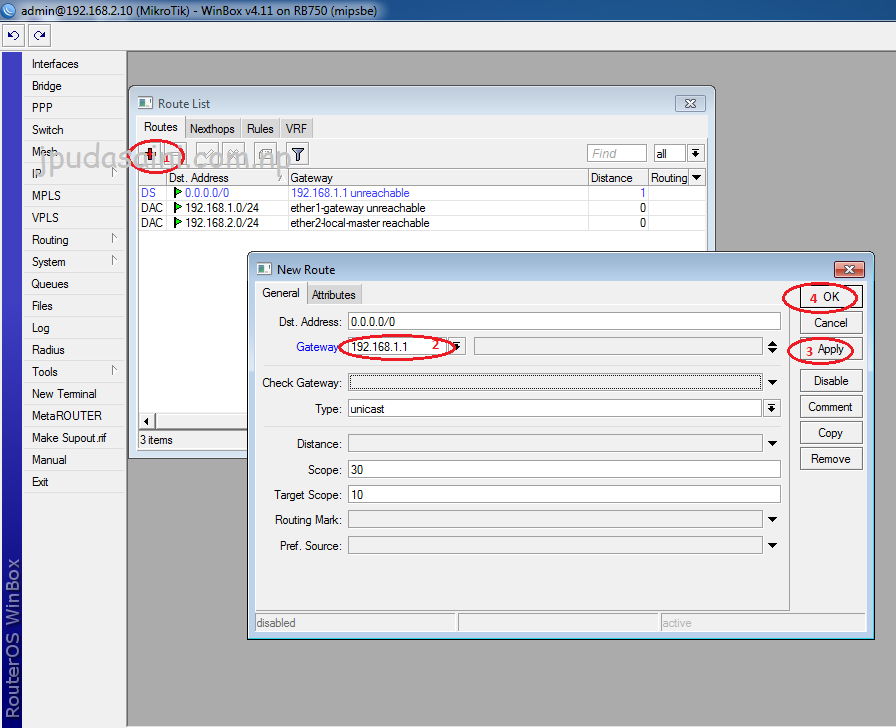

IP has bee setup. Now click On IP>Routes to add route. Most of the time your router already set default routes, you don't have to do anything, encase of you don't see in route then follow the this step.

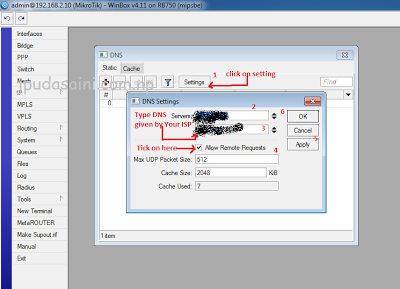

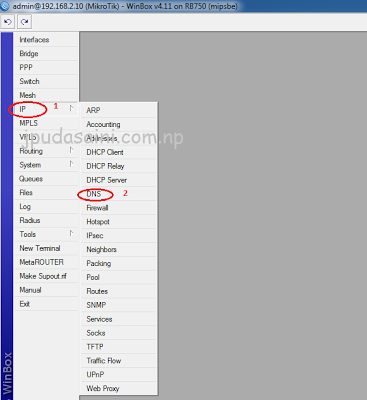

Its time for DNS setting. Click On IP got to DNS then Click on Setting tab.

Here you can type your DNS provided by you ISP.

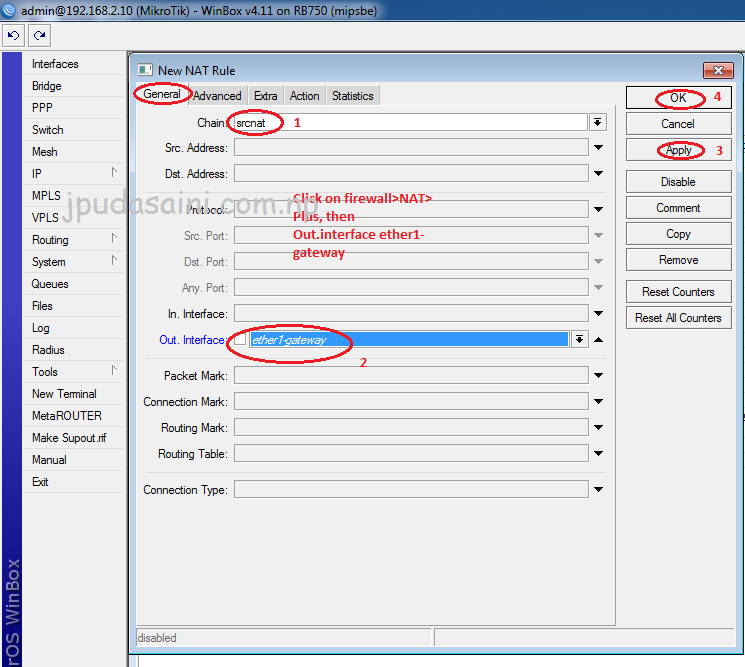

For NAT. Click on IP>firewall>NAT>Plus sign, a NAT window open, see below

Then click on Acton tab and select masquerade.

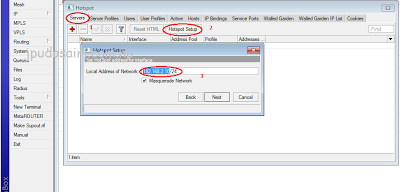

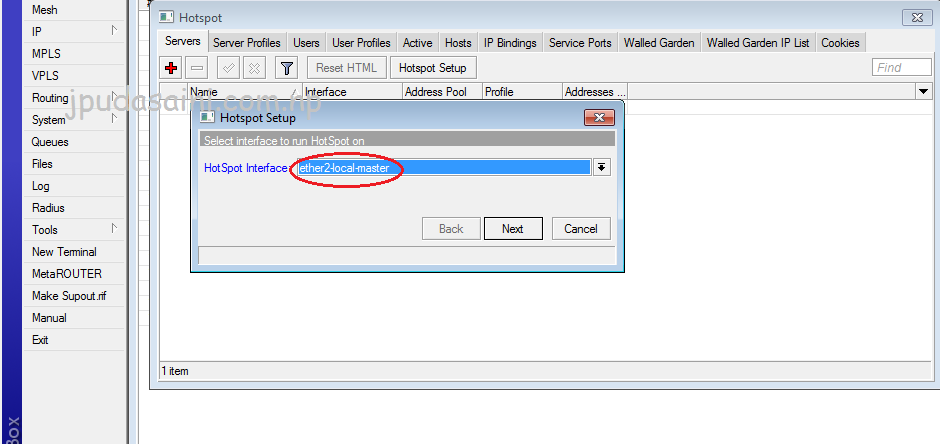

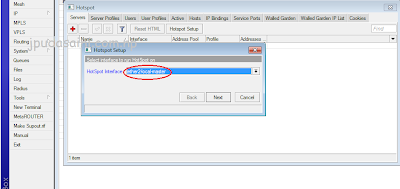

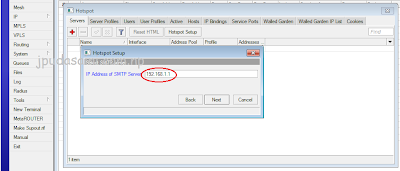

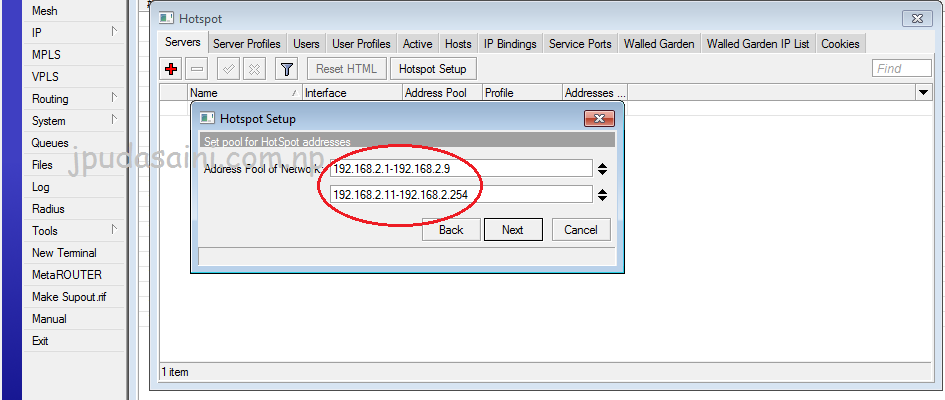

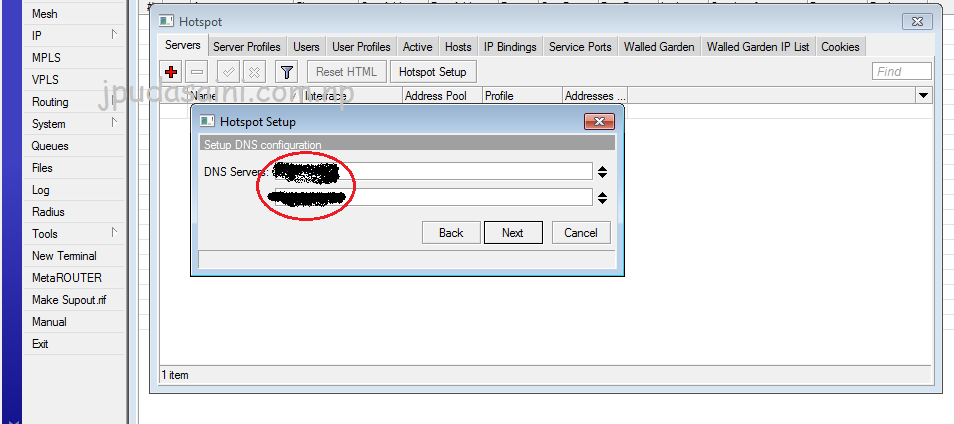

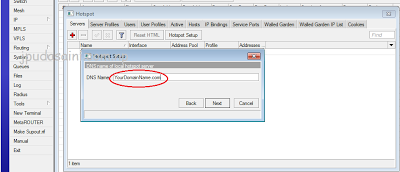

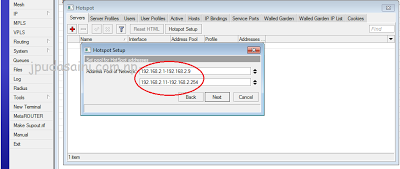

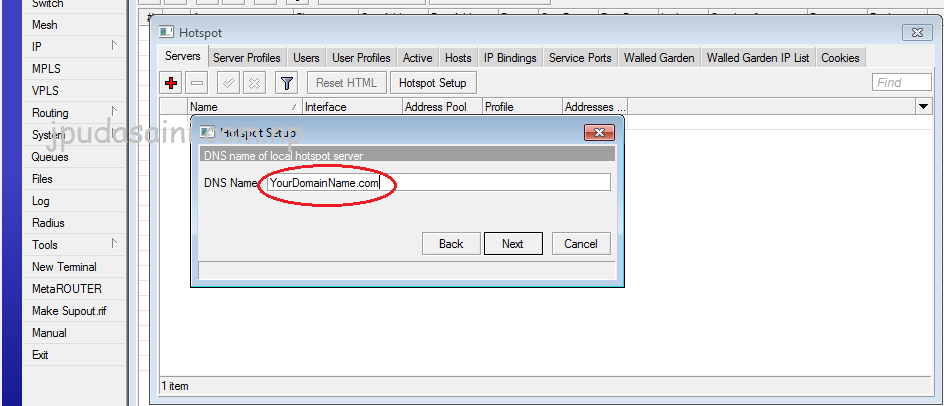

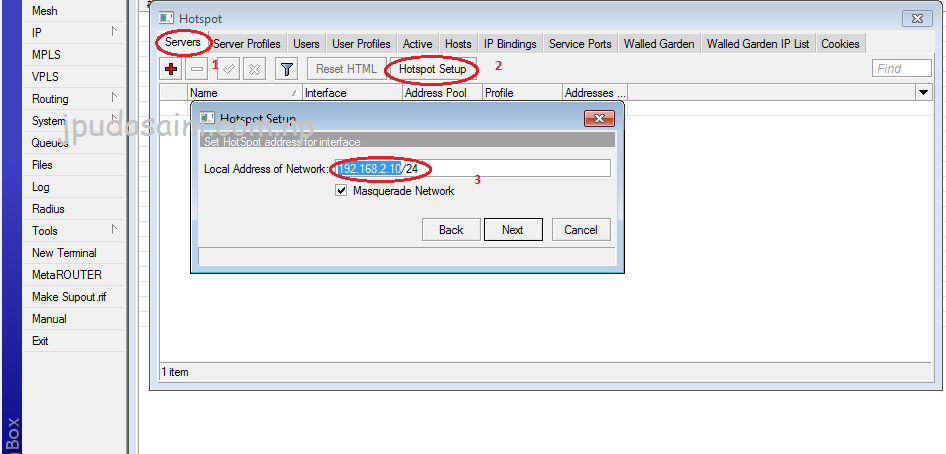

Its time to setup hotspot, here are picture which show you how to setup hotspot.

Add user and user log on window.

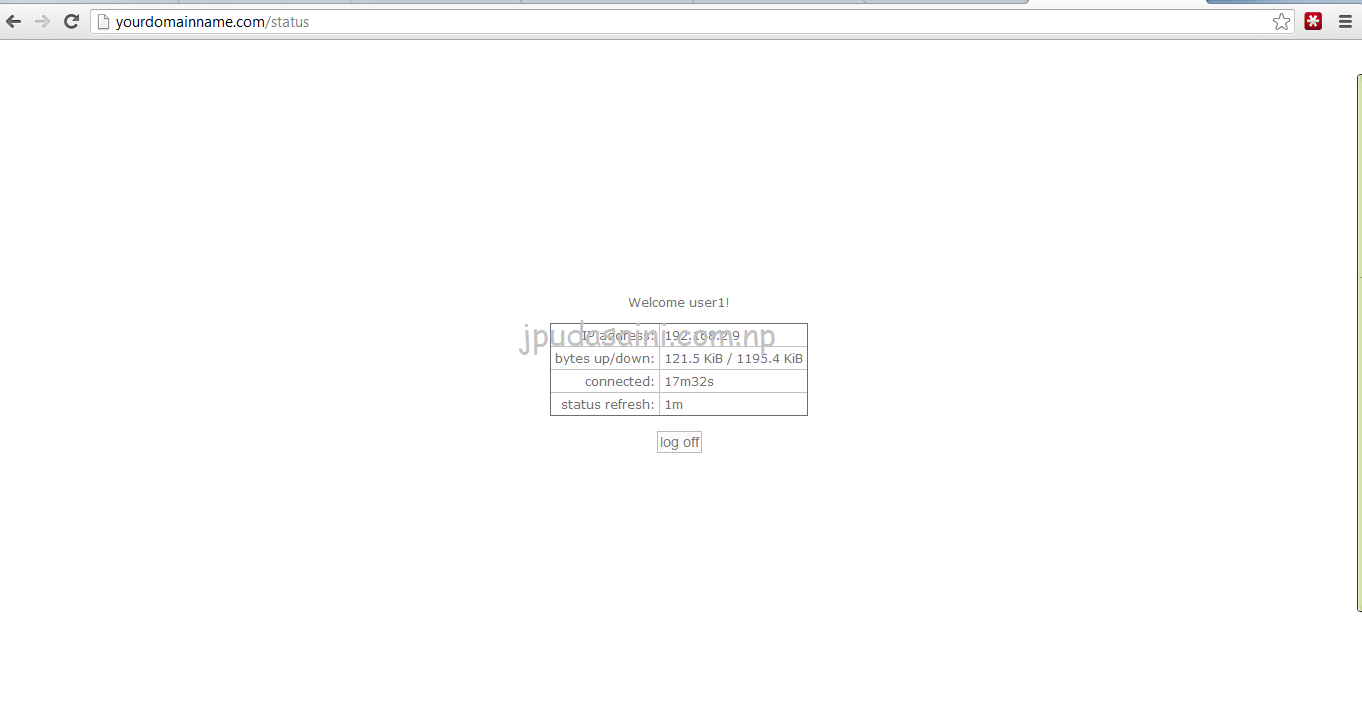

User log in.
